Designed for fast and fun sailing, island and beach hopping and occasional overnighting.

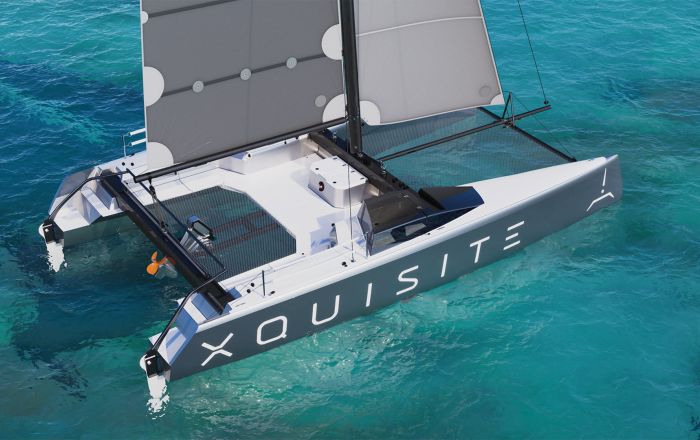

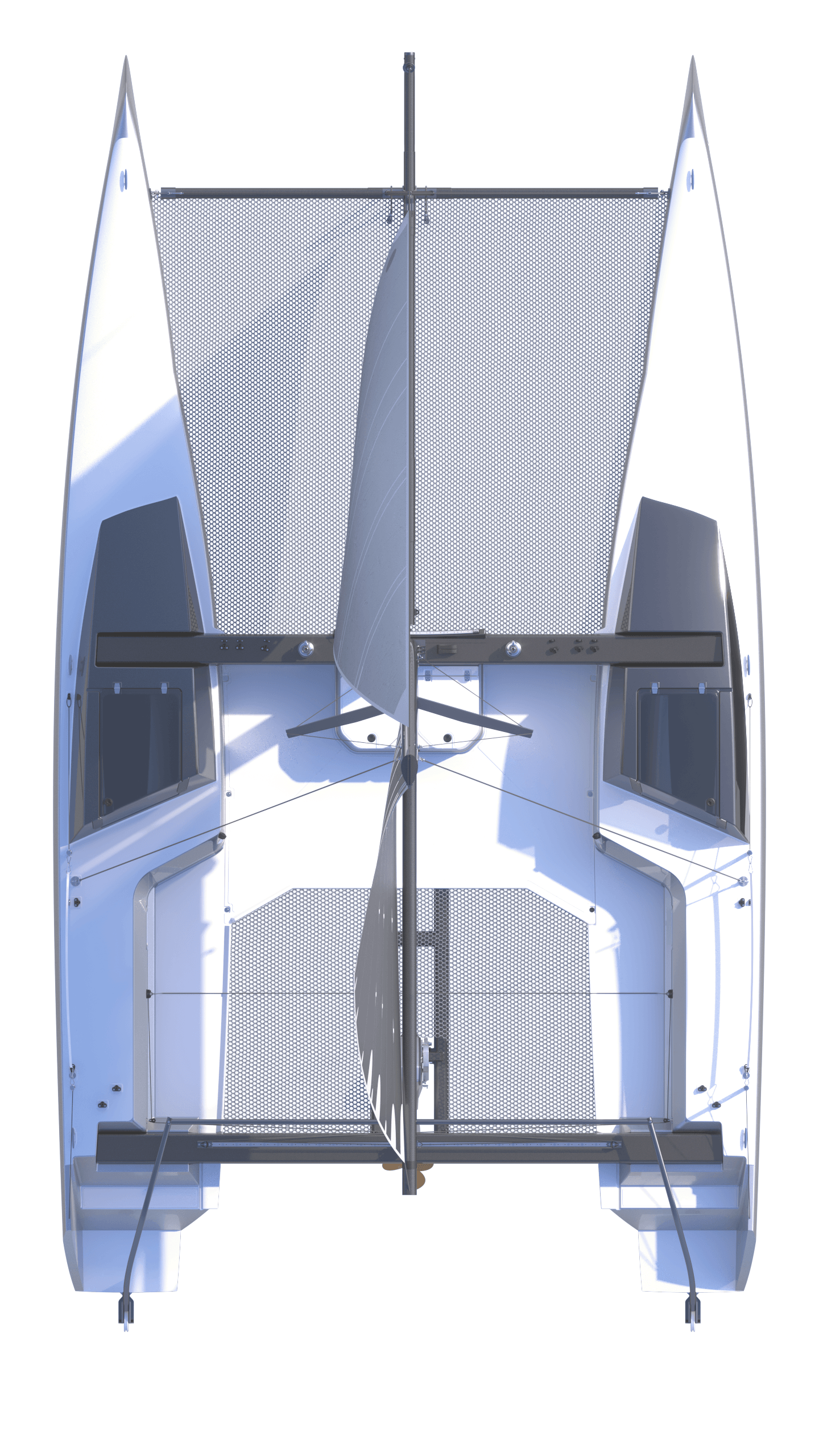

Xquisite 30 Sportcat

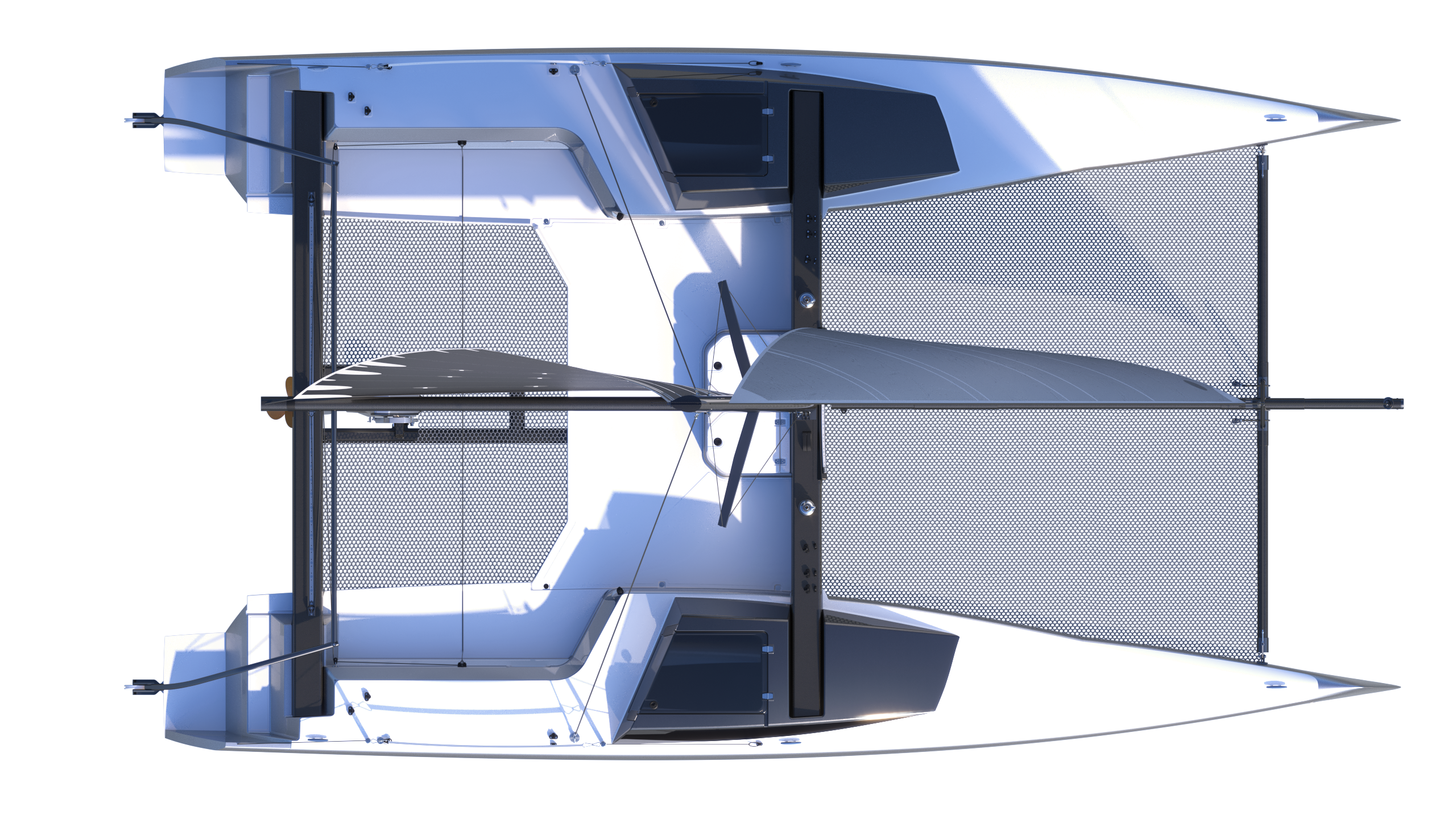

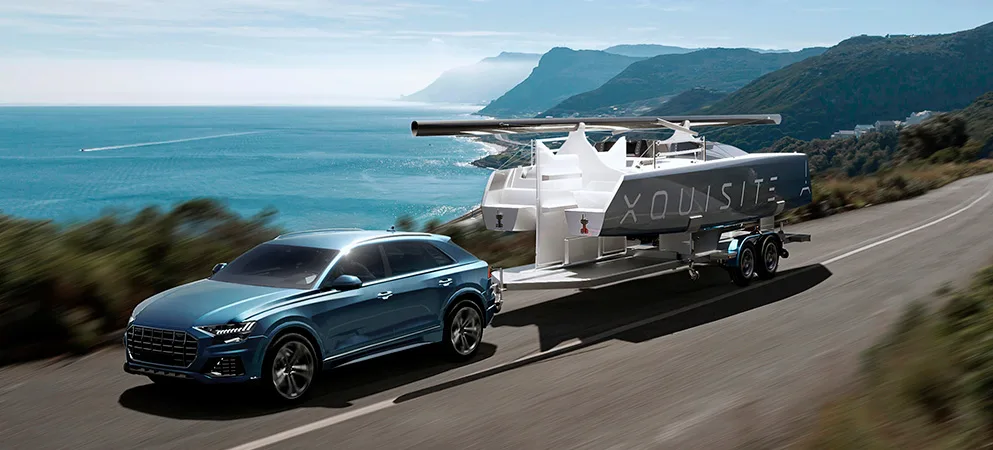

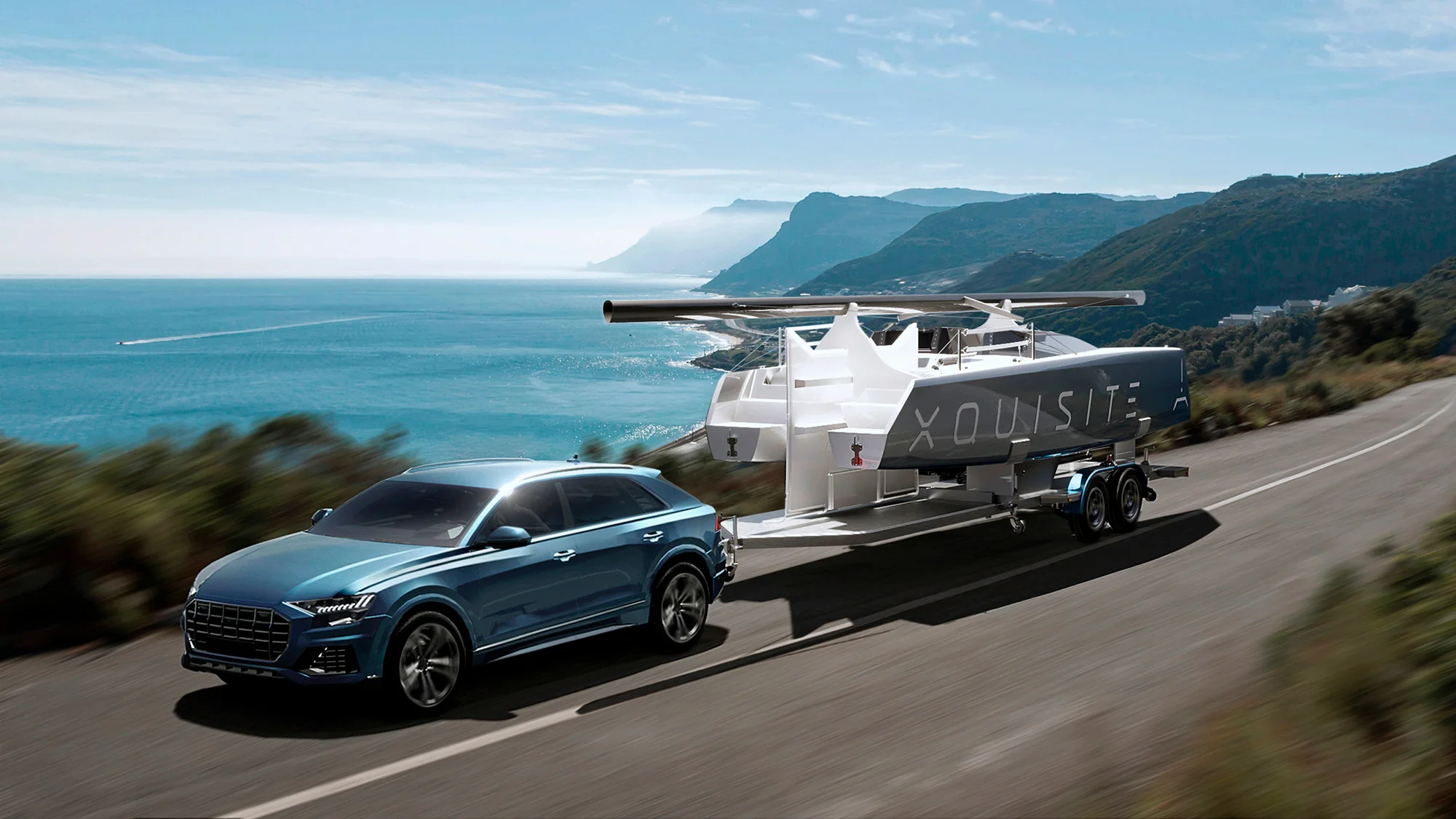

The Xquisite 30 Sportcat innovative and trailer transportable, designed to deliver the ultimate sailing experience.
Easily handled by even non-seasoned sailors, and it can accommodate up to 8 persons onboard.

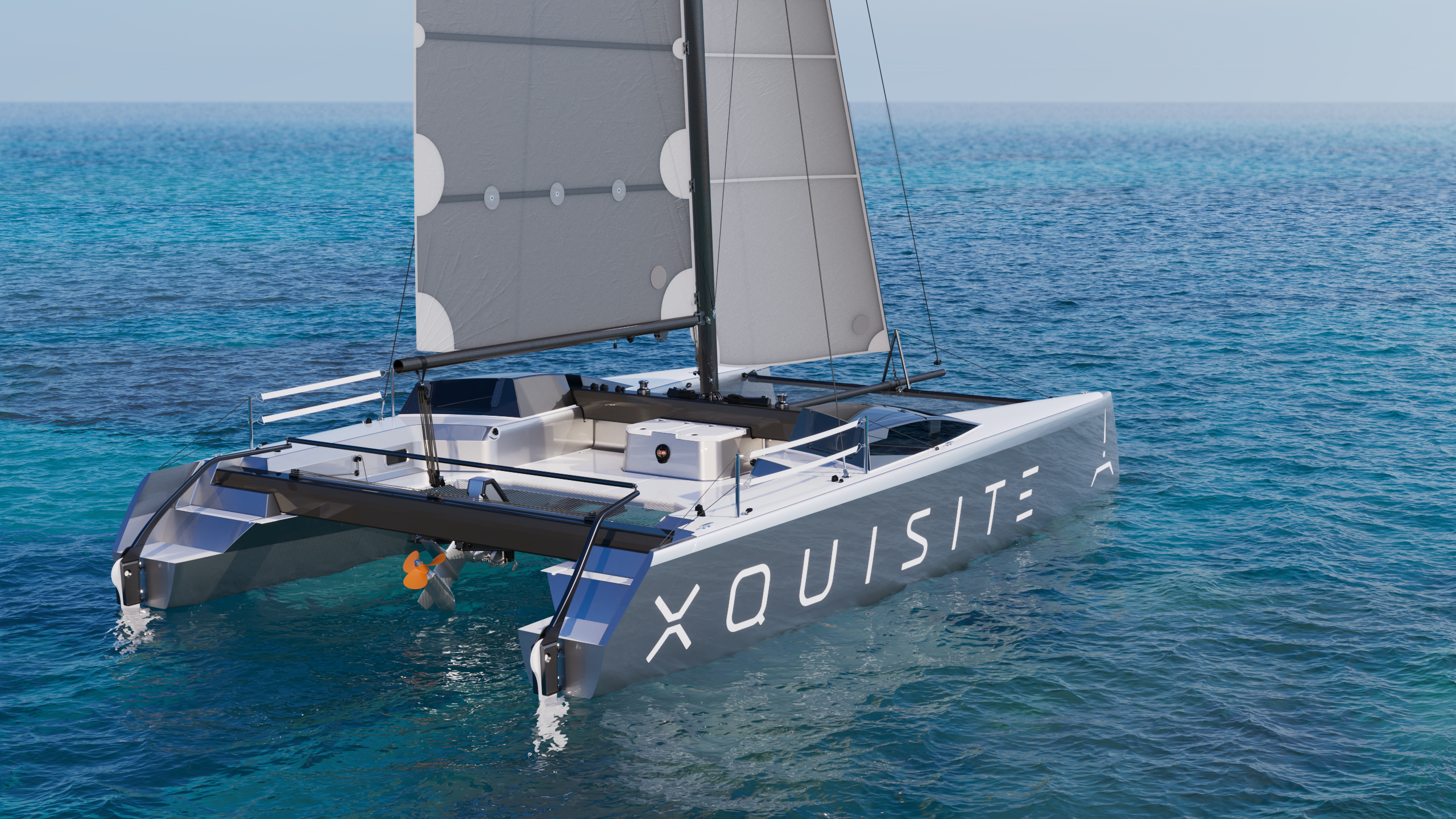

Very light weight construction, carbon beams, rotating carbon mast and high performance sails are part of the standard package and assures the sporty sailing experience.

The mini keels offer a convenient solution to navigate shallow waters while the optional dagger boards boost the performance even further.

The Xquisite 30 Sportcat: A Trailer-Transportable Catamaran for Ultimate Sailing Fun

30 sportcat Video

Xquisite 30 Sportcat Specifications & Extras

  • Main Dimensions
    Length overall9.25 m30.34’
    Length at waterline8.95 m29.36’
    Beam overall5.15 m16.89’
    Beam CL-CL4.1 m13.45’
    Light displacement850 kg1872 lbs
    Draft (inc. outboard)0.872 m2.86’
    Draft Mini keel
    (daggerboards optional)
    0.75 m2.46’
    Full displacement1450 kg3196 lbs

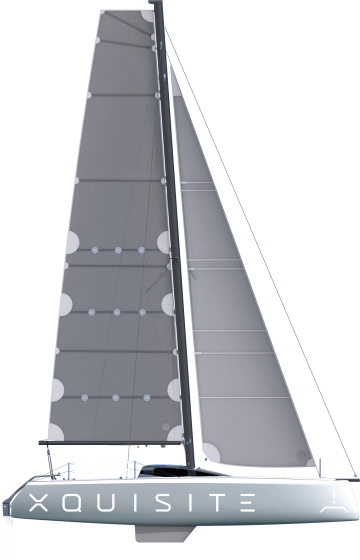

    Mast height13.20 m43.30’
    MS area29 m²312 sqft
    Self-tacking jib area14 m²150 sqft
    Gennaker area37 m²398 sqft
    Outboard Engine
    (electric optional)
    10 HP
    Available with 2024 delivery!
  • Standard Specs
    • E-Glass and Vinyl Ester Composite with Carbon Reinforcement Made by Infusion Method
    • Flexiteek Sinthetic Decking
    • Carbon Fibre Cross Beams
    • Rotating Carbon Mast by Ag+
    • Antifouling on Waterline Level on Hulls
    • Carbon Bow Pipes
    • Carbon Pipe Rudder Connectors and Fins
    • Harken Sailing Hardware
    • Carbon Stanchions
    • Chemical Toilet
    • Compass
    • Led Battery Light in Cabins
    • 2x Mattresses in Cabins
    • Wind Vane
    • Black Mooring Cleats
    • Large Trampolines
    • Deck Windows 2x
    • Outboard Engine Bracket
    • Navigation Lights
    • Anchor And Rode
      • Square Top Mainsail 3Di ENDURANCE 760 14,700 Dp by NORTH SAILS
      • Jib Medium 3Di ENDURANCE 760 14,700 Dpi by NORTH SAILS
      • G Zero Gennaker NPL Code Xi Xi06 CDT by NORTH SAILS
    Available with 2024 delivery!
  • Optional Equipment
    • Exterior Hull Paint
    • Carbon Fibre Epoxy Dagger Boards
    • Ipad With Waterproof Case and Navigation App
    • Carbon Gangway
    • Electric Outboard Motor
    • Trailer for Easy Transportation
    • Safety Pack With Pneumatic Vests, Falres, etc.
    • Solar Panels and Battery Pack
    • Parasailor Downwind Sail With Hardware
    • Shipping and Commissioning
    Available with 2024 delivery!
Main Dimensions
Main Dimensions
Length overall9.25 m30.34’
Length at waterline8.95 m29.36’
Beam overall5.15 m16.89’
Beam CL-CL4.1 m13.45’
Light displacement850 kg1872 lbs
Draft (inc. outboard)0.872 m2.86’
Draft Mini keel
(daggerboards optional)
0.75 m2.46’
Full displacement1450 kg3196 lbs
Mast height13.20 m43.30’
MS area29 m²312 sqft
Self-tacking jib area14 m²150 sqft
Gennaker area37 m²398 sqft
Outboard Engine
(electric optional)
10 HP
Available with 2024 delivery!
Standard Specs
Standard Specs
  • E-Glass and Vinyl Ester Composite with Carbon Reinforcement Made by Infusion Method
  • Flexiteek Sinthetic Decking
  • Carbon Fibre Cross Beams
  • Rotating Carbon Mast by Ag+
  • Antifouling on Waterline Level on Hulls
  • Carbon Bow Pipes
  • Carbon Pipe Rudder Connectors and Fins
  • Harken Sailing Hardware
  • Carbon Stanchions
  • Chemical Toilet
  • Compass
  • Led Battery Light in Cabins
  • 2x Mattresses in Cabins
  • Wind Vane
  • Black Mooring Cleats
  • Large Trampolines
  • Deck Windows 2x
  • Outboard Engine Bracket
  • Navigation Lights
  • Anchor And Rode
    • Square Top Mainsail 3Di ENDURANCE 760 14,700 Dp by NORTH SAILS
    • Jib Medium 3Di ENDURANCE 760 14,700 Dpi by NORTH SAILS
    • G Zero Gennaker NPL Code Xi Xi06 CDT by NORTH SAILS
Available with 2024 delivery!
Optional Equipment
Optional Equipment
  • Exterior Hull Paint
  • Carbon Fibre Epoxy Dagger Boards
  • Ipad With Waterproof Case and Navigation App
  • Carbon Gangway
  • Electric Outboard Motor
  • Trailer for Easy Transportation
  • Safety Pack With Pneumatic Vests, Falres, etc.
  • Solar Panels and Battery Pack
  • Parasailor Downwind Sail With Hardware
  • Shipping and Commissioning
Available with 2024 delivery!
Specifications – Xquisite 30 Sportcat

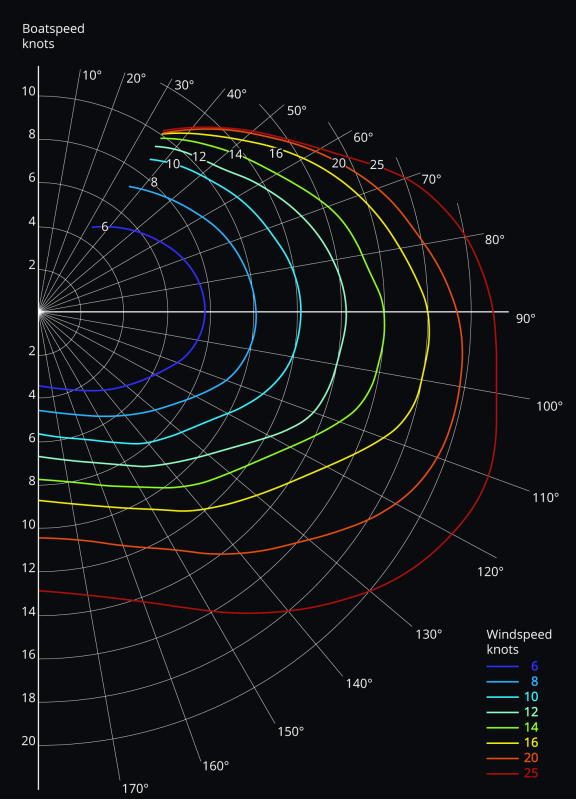

Polars

Polars – 30 Sportcat
